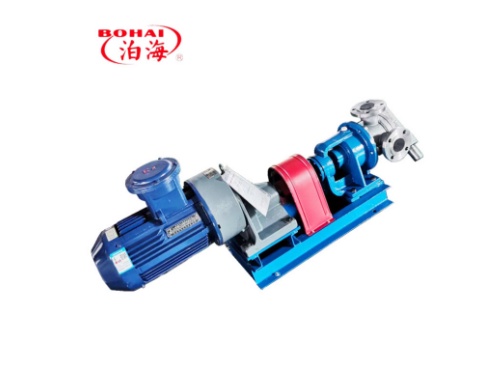

NYP Series high viscosity rotor pump

Ending range of application for high viscosity rotor pump of diesel engine

NYP high viscosity rotor pump is based on petroleum, chemical industry, paint, oil, medicine, dyes, food and other industries demand, research and development of a new type of positive displacement pump, because the product can choose different material and its unique structure, therefore widely used in different nature, different viscosity of media transmission.

Applicable medium temperature: - 10 ℃ -- 200 ℃ (NYP0.78 and NYP2.3 suitable temperature for - 10 ℃ -- 80 ℃).

Applicable medium viscosity: 1.0 cst-300,000 CST (the applicable viscosity of NYP0.78 and NYP2.3 is 1.0 cst-10,000 CST)

Cycling NYP series high viscosity rotor pump structure:

The pump mainly consists of inner and outer rotor, shaft, pump body, front cover, bracket, seal, bearing and so on.There are mechanical seal and packing seal, for high temperature, high viscosity and corrosive medium, choose packing seal.

When transporting crystallizable materials, an insulating jacket can be designed on the front cover and pump body, and when working, it can be heated and melted by steam.Seen from the extension end of the spindle to the pump clockwise rotation.

Features of the high viscosity rotor pump of the ending cylinder series:

(1) smooth delivery of liquid, no pulsation, low vibration and low noise.

(2) strong self-absorption performance.

(3) the correct selection of component materials, can transport a variety of corrosive medium, using temperature is 200 ℃.

(4) the internal and external rotors have the same steering, less wear and long service life.

(5) the pump speed and flow are in a linear function, and the pump flow can be changed by changing the speed appropriately.

(6) it is especially suitable for conveying high viscosity media.
